CONNECTIONS AS STRONG AS STANDARD COMPRESSION IN HALF THE TIME
PN 16
AS/NZS 4129 COMPLIANT
WATERMARK CERTIFIED
Joins PE to PE and to other pipe materials like Copper, Polybutylene, PEX and PVC
Push Fit
Body: Polypropylene, high grade copolymer

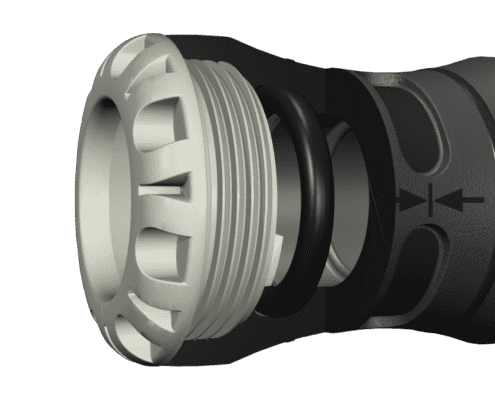

Nut: High Grade Polypropylene

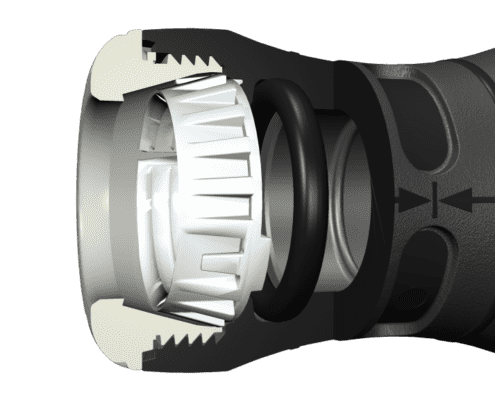

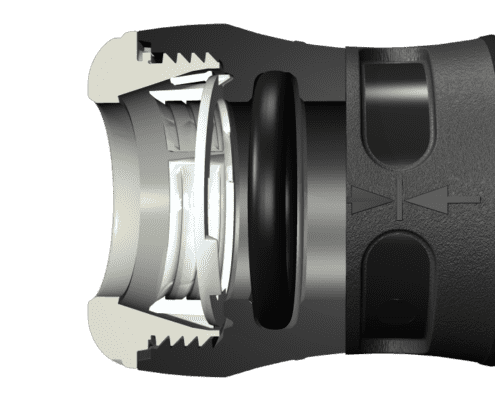

Split Ring and Grip Ring: Acetal (POM)
Liner: Acetal (POM)

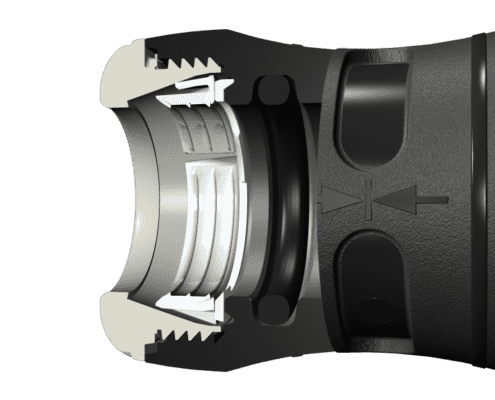

Seal: Nitrile rubber (NBR)
Reinforcing Ring: Stainless steel on all female offtakes from 1¼” up to 2”
All threads conform to ISO – 7/1
All external threads are tapered
All internal threads are parallel
ALL PLASSON COMPRESSION FITTINGS EXCEED PULL-OUT REQUIREMENTS FOR AS4129
Operating Temperatures
These fittings are not to be used with hot water, although they withstand the same temperature as the polyethylene pipe itself.
Series One fittings will withstand sub-zero temperatures.
Chemical Resistance
Series One fittings are supplied, as standard, with polyacetal split and grip rings and NBR seals which are suitable for water.
Operating Pressures and Quality Certificates
PLASSON fittings sizes 20-63 are tested and approved according to AS4129 to PN16
